Technowrap
TechnowrapTM - Engineered composite repairs
Innovative Asset Solutions Group (IAS Group), part of UGL’s Services Division, provides asset life‑extension and critical repair solutions for the resources, infrastructure and industrial sectors. The team specialises in inspection, preservation and repair of process and structural assets using advanced coating, insulation and composite technologies.
Technowrap™ is the main repair system used by IAS Group in a joint venture with ICR Integrity to fix and strengthen ageing or damaged assets. It’s a defined‑life composite wrap designed to restore the integrity of corroded, weakened or leaking pipework, pipelines and structural components. Because it can be applied while equipment is still running with no shutdowns required it helps operators keep production going while safely extending the life of their assets.
Key features
- applied live with no shutdown or isolation required.
- defined repair life engineered to ISO 24817 and ASME PCC-2.
- suitable for internal/external corrosion, through-wall defect, cracks, dents and mechanical damage.
- temperature range: -75°C to 230°C (-130°F to 428°F).
- pressure performance up to 1400batg (20,305psi).
- approved by Lloyd's Register(LR) ABS, DNV, BV.
Where Technowrap™ is used
Process equipment and pipework
- general piping systems
- vessels and headers
- high-pressure lines
- weld zones and intersections

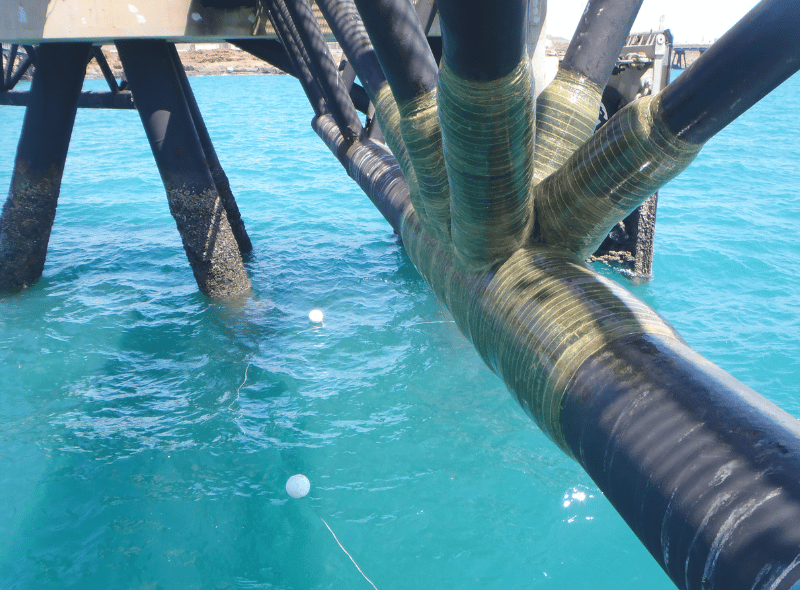

Pipelines and offshore
- risers and caissons
- subsea piepline sections
- splash-zone repairs (wet/humid environments)
Structural componets
- decks, tanks, roofs and beams
- floating roofs
- panels and stiffeners
Technowrap™ cloth types
Technical information
Pressure
Pressures up to 250BarG/3626psi (12"line). Through wall 50BarG/725psi.
Temperature
-75 to 230°C (-100 to 428°F)
Defects
Internal corrosion/external corrosion. Through wall defects and live leaks. Dents and cracks.
Approvals
TechnowrapTM has type approval certification from ABS, Lloyds and DNV-GL.
